SprayPaint Booth Controller
This site showcases our advanced, bespoke designed controller for all Spray Paint and Baking oven Booths. The system comprises of a 7" colour touch screen user interface and a remote motherboard - usually positioned in a switchboard along with the fan control and heavy current wiring.
System Introduction
This bespoke Spray Paint and Bake Booth controller monitors and auto controls the booth pressure, air flow and booth temperature.
The controller is ideal for automotive, industrial, furniture and aeronautical painting and baking applications.
4 core Data cable used to connect the operator touch screen to the remote switch panel placed new the fan motors - saves power cable routing.
High profile customers of our booth controller coat for Airbus, Mercedes, BMW, Audi, Volvo, Caterpillar, Terex, Grove and Mannesmann Demag amongst others.
Product Showcase

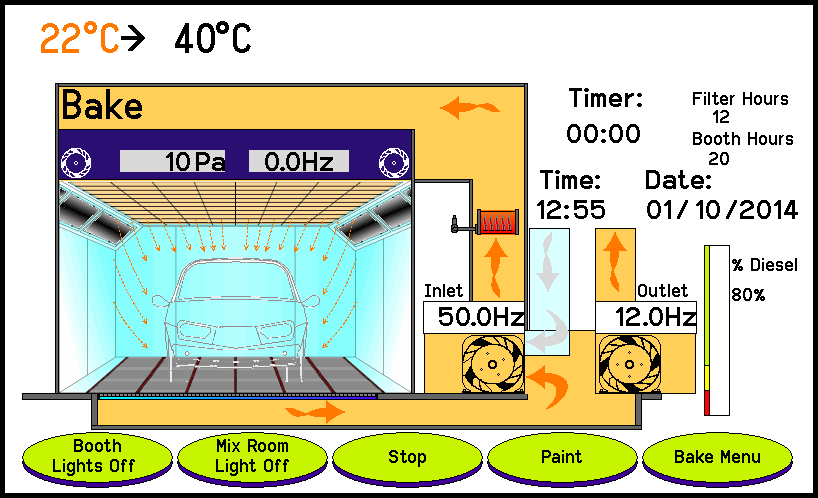

7" TFT Capacitive Touch Display
HMI based on colour touch screen with control and logging functions.

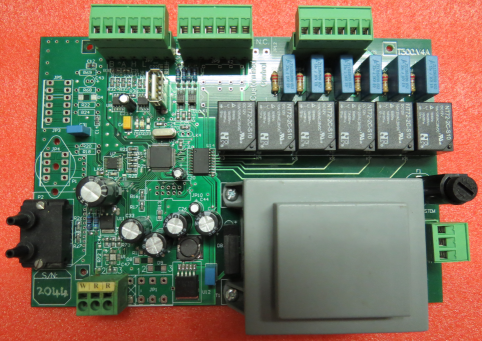

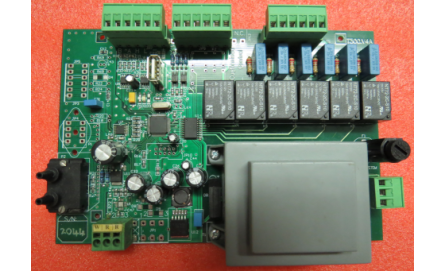

Motherboard
This remote motherboard links to the display unit using a highspeed CAN data communication. Using the remote motherboard all heavy current wiring can be kept to the fan motor area an only a light 4 wire cable is need be routed to the front of the booth.

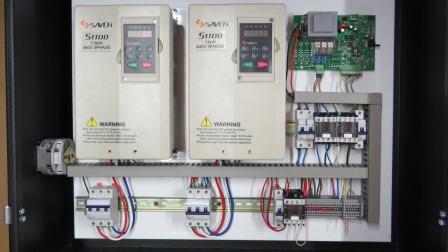

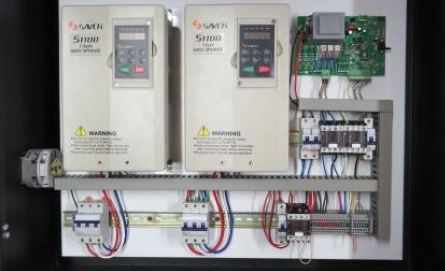

Switch Board
The switchboard houses all the variable speed drives to the fan motors, contactors for lights and burners and temperature probe and booth pressure sensor.

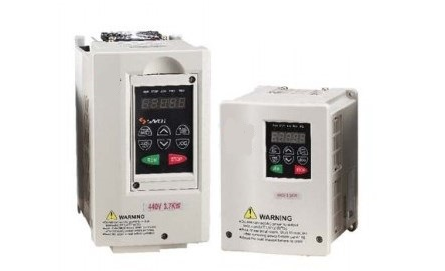

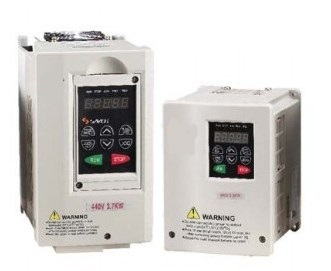

Variable Speed Drives (VSD)
Our controller interfaces to Variable Speed Drives to control the Booth Fan Speeds to maintain optimum Booth Pressure and Airflow.
System Control Features
Booth Control Software
| Fully Automatic Control |
|---|
| * Automatic Temperature Control in all modes of operation. |
| * Booth Pressure held at a constant preset pressure. |
| * Energy Efficient modes of operation - Paint Standby, Door Open detection, Burner skip cycle. |
| * Waterborne Paint Drying modes. |
| * Data Logging of Booth Hours, Filter Hours, Burner Hours, Paint and Bake cycle counts. |
| * Warnings of Filter condition based on Fan Speed control parameters. Ensures Booth runs at the most efficient and optimal condition. |
Booth Operation Modes
| Automatic / Manual Modes |
|---|
| * Ready / Stopped. |
| * Paint / Paint Standby. |
| * Flash Off. |
| * Heating Ramp. |
| * Bake With and Without a Timer. |
| * Blast Fans Warm / Cool for Waterborne Paints. |
| * Cooling. |
System Feature Table
7" Capacitive Touch TFT Screen
| Intuitive User Interface |
|---|
| * Full Control of all Booth Functions |
| * Displays all fan speeds |
| * Displays Booth Temperature |
| * Displays Booth Pressure |
| * Displays Filter, Booth and Burner Hours |
| * Optional Diesel tank level Gauge |
Motherboard
| Interface to Power Control |
|---|
| * Intergrated Pressure sensor |
| * Temperature Probe input |
| * Relay outputs for Burner |
| * Relay outputs for Booth lights |
| * Relay outputs for Robot Warning lights |
| * Inputs for Door Interlocks |
| * Inputs for Spray gun Airflow Switch |
| * RS485 and CAN Ports for Interface to Variable Speed Drives |
Switch Panel
| Enclosed Electrical switch board - Houses... |
|---|
| * Motherboard Control Electronics |
| * Required Contactors |
| * Emergency Stop Power Isolator Switch |
| * Cooling fan and filter |
Variable Speed Drives
| Fan Motor Speed Controllers |
|---|
| * 5,5Kw, 7kW and 11kW sizes |
| * Maintain Correct Power factor |
| * Accelerate fan motors to reduce strain on fan drive belts |
| * Reduces inrush currents on motor starts |
| * Allows perfect speed control of all Booth fan motors for optimal Booth operation |
About Us
We are an Industrial Control company established in 1988. We've always designed around the latest technology and our products are designed and manufactured to the highest standards that are demanded of reliable industrial applications.
Our systems in the various industries we supply are installed in Europe, United Kingdom, Middle East, Africa, Asia, South America and New Zealand.
